Key Features
1. Stability-First Design: Linkage-connected hydraulic buffer and hook ensure reverse damping, reducing door swing during operation.

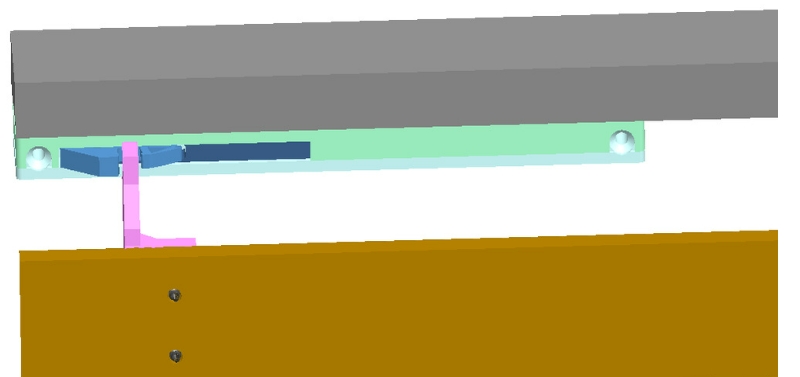

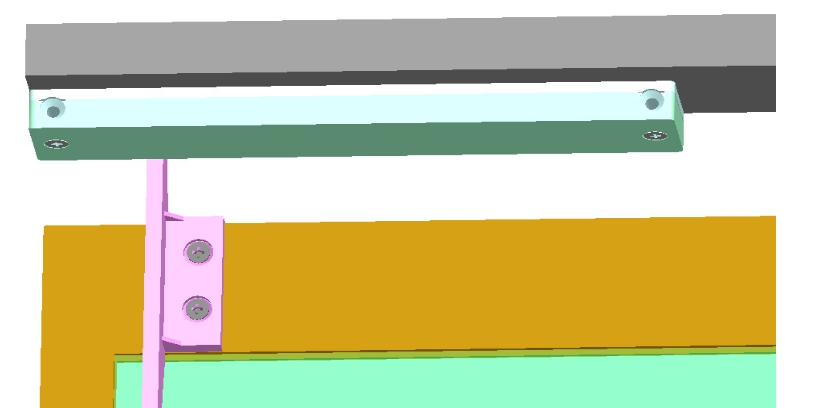

2. Edge-Mounted Optimization: Door hangers install near the edge for enhanced weight distribution and minimized wobble.
3. Guided Motion Control: L-shaped track and positioning pillar restrict lateral movement, ensuring smooth linear glide.
4. Dual Weight Capacity: Covers 20-40KG and 40-60KG doors (two series).
5. Spring-Assisted Reset: Integrated spring automatically resets the hook, maintaining consistent tension.
6. Corrosion-Resistant: Zinc-alloy frame and sealed hydraulic unit withstand humid environments (e.g., bathrooms).
7. Tool-Free Adjustment: Pre-aligned mounting holes simplify installation on overhead tracks.
Product Specifications
| Parameter | Value/Description |

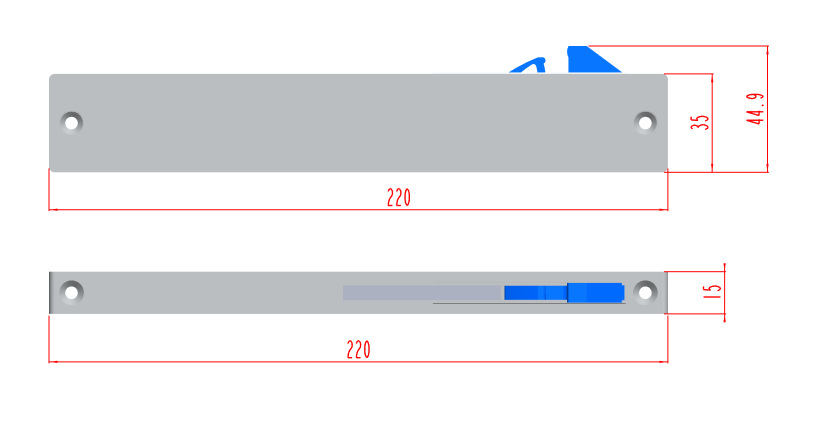

| Dimensions | |
| Length | 220 mm |
| Width | 15 mm |
| Height | 35 mm |
| Door Weight Range | 20-40KG (Standard), 40-60KG (Heavy) |
| Operating Temperature | -20°C to 60°C |
| Hydraulic Cycle Life | 150,000 cycles (tested) |
| Delivery Time | 10 days (MOQ: 5,000 pcs) |
| Packaging | Reinforced Carton (Water-Resistant) |
| Payment Terms | 30% deposit, 70% balance before shipment |
Applications
- Shower Doors: Stabilize frameless glass enclosures in high-humidity bathrooms.
- Wardrobe Systems: Ensure smooth motion for heavy wooden or mirrored sliding doors.
- Balcony Partitions: Reduce wind-induced sway in large glass or aluminum doors.
- Commercial Partitions: Enhance durability for office dividers and retail space screens.
Notes
- Includes universal mounting kits for overhead tracks (glass, aluminum, steel).
- Customizable spring tension and hook sizes available for OEM/ODM orders.
