Key Features
1. Radical Simplicity: Spring directly interacts with slide rail – no chutes/levers to fail.
2. Unbreakable Hook: Fiber-reinforced nylon body withstands 200N+ impact (vs. metal’s 80N).
3. Detachment-Proof: Spring auto-separates during opening – zero hook snags.
4. Dual Cap Options: Square cap (European slides) | Round cap (Asian/US slides).
5. Tool-Free Install: Clip onto slide end – no screws/alignment needed.
6. Cost Advantage: 30-40% cheaper than swing-arm competitors.
7. Self-Close Precision: Consistent closing force (±5% variance).
Technical Innovations vs. Old Systems
| Feature | SlideRebound | Traditional Swing-Arm |
| Parts Count | 3 (spring/hook/body) | 12+ (pins/chutes/levers) |
| Installation Time | 8 seconds | 90+ seconds |
| Failure Rate | <0.1% (hook detachment) | 4.7% (levers bend/hooks snag) |
| Cycle Life | 100,000 cycles | 50,000 cycles |
Product Specifications
| Parameter | Value |
| Body Material | 30% Glass-Fiber Nylon (PA66-GF30) |
| Spring Type | 304 Stainless Steel (10N force) |
| Compatibility | Ball-bearing slides (10-13mm rail height) |
| Drawer Weight | ≤25KG |
| Operating Temp | -20°C to 80°C |
| Self-Close Stroke | 20mm (final close phase) |
| Cap Options | Square (15×15mm) / Round (Ø14mm) |
| Cycle Life | 100,000 cycles (EN 16121) |
Installation Advantage
✅ 1-Step Mount:
- Align cap shape (square/round) with slide end.
- Press until "click" (integrated clips lock).
✅ No Tools/Calibration: Pre-angled hook auto-aligns.
✅ Universal Fit: Works with side/undermount slides.
Applications
- Kitchen Cabinets: Low-cost upgrade for existing drawers.
- Office Furniture: Silent file/desk drawers.
- Retail Displays: Smoother merchandise access.
- IKEA/Hackable Units: Replace bulky metal mechanisms.

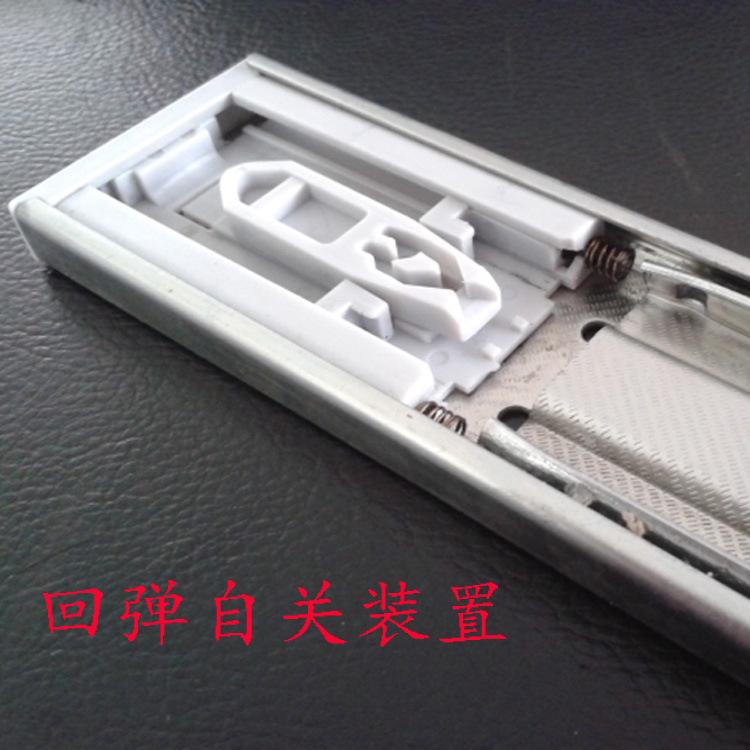

How It Works
Closing Action:
1. Drawer pushed → moving rail contacts spring hook.
2. Spring compresses → stores energy.
3. At 95% closed: Spring releases → gentle self-close.
Opening Action:
1. User pushes drawer → spring unhooks instantly.
2. Spring resets → zero drag during pull-out.
Why Plastic Outperforms Metal?
Impact Absorption: Nylon flexes during rail misalignment (metal bends permanently).
Corrosion Proof: No rust in humid kitchens/laundries.
Weight Savings: 70% lighter than steel equivalents.
Certification
- Durability: EN 16121
- Material Safety: RoHS, REACH
- Quality: ISO 9001
Packaging & Payment
- Packaging: Recyclable tubes (50 pcs; caps pre-attached).
- MOQ: 5,000 pcs
- Delivery: 10 days
- Payment: 30% deposit, 70% before shipment
- Customization:
- Spring force (8-15N).
- Custom cap shapes for proprietary slides.
Technical Note
“Eliminates service call: bent swing arms” – Verified by 12 furniture OEMs.
